Product Gallery
A Collection of Boats we've built with Passion
 |  |  |  |
|---|---|---|---|
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |
Our Models

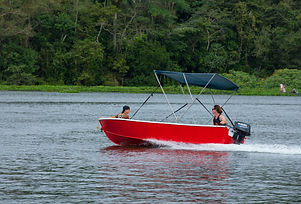

"14 ft Skiff"
A classic 14th fishing boat.Uses 1/8" marine grade aluminium for the hull and internal structure.Seats and Stem are foam filled for flotationThis model has been sold over 300 times worldwide.The compact design make it last a Lifetime..We recommend outboard engines up to 25 hp ,if engines of more than 110lbs are intended to install,some more foam material shall be added near transom.It's perfect for inland lakes,rivers and sheltered salt water uses.
Features:
Length 4,3 m/ 14 ft
Displacement 400 kg
Material Marine Grade Aluminium
Hull Draft 0,15 m
LWL 4,1 m
Hull Weight 160 kg
Beam 1,58 m
Max Speed 20kn
Motor Capacity 25 hp
Fuel Type Petrol
(In Stock)
Coral 27
A very versatile boat for personnel and equipment transportation. Its three fuel tanks allow a huge operation range, at anchorage areas or even to the islands of the gulf, without the need of frequent fuel stops. Available in different hull sizes and also with transom for twin outboard engines.
Features:
Length 7.9 m/ 26 ft
Displacement 2t
Material Aluminum 5083/5086
Hull Draft 0,4 m
LWL 6,98 m / 22 ft 11 in
Beam 2.56 m/ 8 ft 5 in
Max Speed 35 kn
Motor Capacity 330 hp inboard/outboard
Fuel type Diesel
"Albatross Mk2"
An excellent and smart looking family or fishing boat.Albatross Mk2 can be built as a centre console,or cuddy cabin with an outboard well or full or half pod.Length is 6.1 (20`)Beam 2.13 metres (7'0"").Weight about 800kg making it ideal for towing behind a 6 cylinder family car.Aluminium weight about 450 kg.Construction with flat bar frames,tubular keel,stem and chines and 3,2mm plating.Single 115 hp or twin 70 hp outboard motors.
Features:
Length 6.10 m/ 20 ft
Displacement 800 kg
Material Marine Grade Aluminium
Hull Draft 0,2 m
LWL 4.57 m
Hull Weight 450 kg
Beam 2.13 m
Max Speed 30 kn
Motor Capacity 115 hp
Fuel Type Petrol
Fuel Capacity 180 litres
(In Stock)
"Alloy Express"
Alloy Express is a 9.5 metre fast offshore craft.constructed from aluminium and powered by twin outboards,the boat makes an excellent platform for commertial, scientific or recreational activities well away from home port. The hull has a superb entry angle and a 15 degree constant deadrise. In its standard configuration futh a forward cabin set-up It has a multi-use open load area of 3 x 4 meters which can be costumized according clinets needs. Other configurations are for transport of 16 persons or as an offshore diving craft.
​
Features:
Length 9.50 m / 31 ft
Displacement 5000 kg
Material Marine Grade Aluminium
Hull Draft 0.45 m
LWL 8.5 m
Hull Weight 1.500 kg
Beam 3.3 m
Max Speed 40 kn
Motor Capacity 2x 250 hp
Fuel Type Petrol
Fuel Capacity 1200 litres
Cope Discovery 28
This is a high speed diesel inboard / outboard powered boat. Powered by Volvo Penta or Yanmar 330hp. It is set up as a 10-12 passenger crew boat. Great for moving cargo and people Stability-with 11 people at the side-list: 5 deg. Also available with 02 outboard gas engines.
Features:
Length 9,1 m / 30 ft
Displacement: 6t
Material Marine Grade Aluminium
Hull Draft 0.7m / 25in
LWL 6.89m / 22.5ft
Hull Weight 2600 kg
Beam 3.05 m / 10.5 ft
Max Speed 33.5 kn
Motor Capacity 330 hp
Fuel type Diesel
(In Stock)
